Fan Coils
Venkon XL
Article no.:
34821D0L217U04
List price
1,870.00 CAD
zzgl. 19% MwSt.
Overview
The unit is easy to clean and the entire design is certified to VDI 6022. As standard, the Venkon XL is equipped with ePM10>50% (M5) / MERV 8 filters or ePM1>50% (F7) / MERV 13.
The generously dimensioned heat exchanger ensures the highest possible output.
The unit can either be suspended from the ceiling on threaded rods or attached to the concrete ceiling with rubber washers to decouple the sound.
The condensate tray continues as far as the heat exchanger connection area to collect any condensate produced. Fully coated, insulated and designed for ease of cleaning. Separate condensate trays are available for the valves.
Water and electricity connections are routed out of the unit at opposite ends for a simple and freely accessible connection.
Optionally available separately or fitted and wired on the basic unit.
The Venkon XL fan coil is equipped with electromechanical control. Various valve options available.
Calculate performance data
Sound power octave spectrum
The sound power is determined depending on the use according to ISO 3741 (in the echo chamber), according to ISO 3744 (in the low-reflective half-space) or according to ISO 9614 (intensity method).
Oktave Spektrum
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| A | B | C | D | |
|---|---|---|---|---|
| GWP - Total kg CO2 eq | 1.48E+02 | 4.98E+01 | 1.16E+00 | -5.42E+01 |
| GWP - fossil kg CO2 eq | 1.47E+02 | 4.98E+01 | 1.12E+00 | -5.38E+01 |
| GWP - Biogenic kg CO2 eq | 2.42E-01 | 0.00E+00 | 3.39E-02 | -3.05E-02 |
| GWP - Luluc kg CO2 eq | 8.57E-01 | 3.17E-02 | 1.79E-04 | -3.71E-01 |
| ODP kg CFC-11 eq | 2.34E-06 | 3.82E-07 | 6.44E-09 | -3.00E-07 |
| AP mol H+ eq | 1.82E+00 | 1.74E-01 | 1.29E-03 | -4.76E-01 |
| EP - fresh water kg P eq | 1.20E-02 | 3.51E-03 | 3.95E-06 | -1.80E-03 |
| EP - marine kg P eq | 3.43E-01 | 3.31E-02 | 4.38E-04 | -4.85E-02 |
| EP - country mol N eq | 2.04E+00 | 2.81E-01 | 4.33E-03 | -5.69E-01 |
| POCP kg NMVOC | 7.07E-01 | 1.09E-01 | 1.87E-03 | -2.03E-01 |
| ADPE kg Sb eq | 2.25E-02 | 8.05E-04 | 9.78E-07 | -1.92E-03 |
| ADPF MJ | 1.95E+03 | 9.07E+02 | 5.80E+00 | -5.03E+02 |
| WDP m³ depriv. | -6.63E+01 | 1.13E+01 | -2.52E-01 | -1.27E+01 |
| GWP-GHG kg CO2 eq | 1.49E+02 | 4.99E+01 | 1.13E+00 | -5.42E+01 |
| PM disease inc. | 1.03E-05 | 8.15E-07 | 3.77E-08 | -6.36E-06 |
| IR kBq U-235 eq | 2.72E+02 | 7.71E+00 | 2.24E-03 | -2.86E-01 |
| ETP - FW CTUe | 3.36E+03 | 2.27E+02 | 1.99E+02 | -1.09E+03 |
| HTP - C CTUh | 2.08E-06 | 1.25E-07 | 2.09E-09 | -2.68E-06 |
| HTP - NC CTUh | 1.40E-05 | 5.82E-07 | 1.69E-08 | -2.19E-06 |
| SQP - | 1.11E+03 | 1.54E+02 | 7.20E+00 | 2.87E+01 |
| PERE MJ | 3.66E+02 | 9.83E+01 | 8.41E-02 | -2.05E+02 |
| PERM MJ | 1.07E+00 | 0.00E+00 | -1.07E+00 | 0.00E+00 |
| PERT MJ | 3.67E+02 | 9.83E+01 | -9.89E-01 | -2.05E+02 |
| PENRE MJ | 1.95E+03 | 9.07E+02 | 5.80E+00 | -5.03E+02 |
| PENRM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT MJ | 1.95E+03 | 9.07E+02 | 5.80E+00 | -5.03E+02 |
| SM kg | 3.60E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW m³ | -6.49E+01 | 1.10E+01 | -2.52E-01 | -6.64E+00 |
| HWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD kg | 2.05E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR kg | 4.06E+00 | 0.00E+00 | 1.87E+01 | 0.00E+00 |
| MER kg | 1.00E+00 | 0.00E+00 | 2.51E-01 | 0.00E+00 |
| EE (Electrical) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 4.54E-01 |
| EE (Thermal) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 1.55E+00 |
Accessories
Perimeter Casings
calculation-relevant accessory

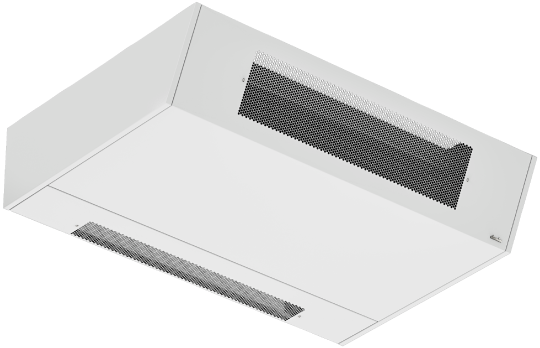

Casing, ceiling-mounted
calculation-relevant accessory
durable wall casing made of powder-coated galvanised sheet steel, the filter can be changed or inspected without disassembly of the casing, horizontal suspended, powder coated, Colour RAL 9016 traffic-white, pre-fitted housing
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
34822D0BH100
List price
855.00 CAD
zzgl. 19% MwSt.
Filter
calculation-relevant accessory
Filter
calculation-relevant accessory
cassette filter as a replacement filter, ePM1 filter>50% (F7) / MERV 13, 1 set = 1 piece(s)
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
34829B0B0107
List price
65.00 CAD
zzgl. 19% MwSt.

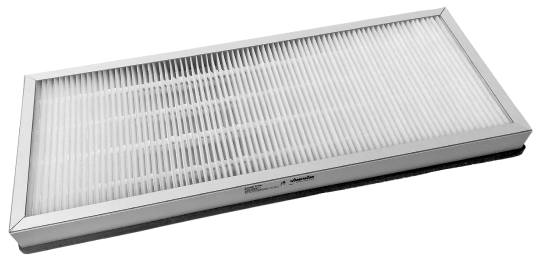

Filter
calculation-relevant accessory
cassette filter as a replacement filter, ePM10 filter>50% (M5) / MERV 8, 1 set = 1 piece(s)
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
34829B0B0105
List price
65.00 CAD
zzgl. 19% MwSt.
Condensate tray/pump

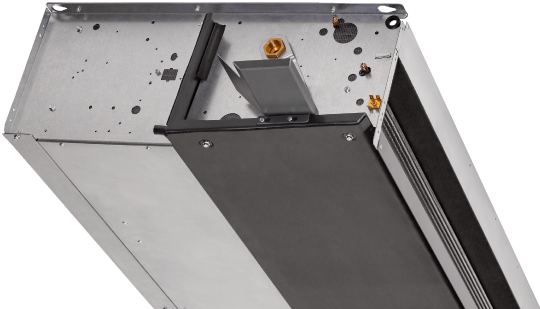

Valve condensate tray, for ceiling mounting
to collect any condensate produced on the valves, powder coated, Colour RAL 7024 graphite grey, factory-fitted to the basic unit
Suitable for: Model size 1 - 4
Suitable for: Model size 1 - 4
Article no.:
34824D0B000
List price
40.00 CAD
zzgl. 19% MwSt.
Accessories for recirculation air basic unit, air-side
calculation-relevant accessory
surcharge per spigot for flexible pipe connection plenum box
surcharge per spigot (size 100 mm, 125 mm, 150 mm, 180 mm or 200 mm) for the flexible pipe connection plenum box with the Venkon XL
Suitable for: all sizes
Suitable for: all sizes
Article no.:
34825B0B0005
List price
40.00 CAD
zzgl. 19% MwSt.

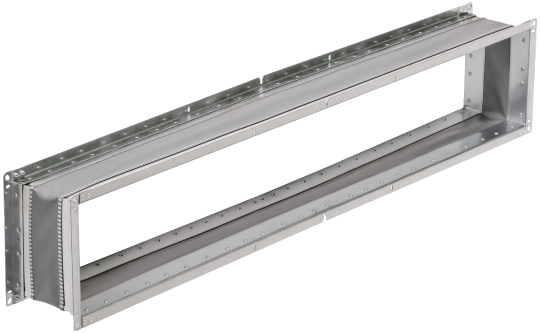

Flexible connection
with frame on both sides, including canvas for structure-borne noise decoupling and length compensation of on-site dimensional inaccuracies
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
34825B0B0104
List price
94.00 CAD
zzgl. 19% MwSt.

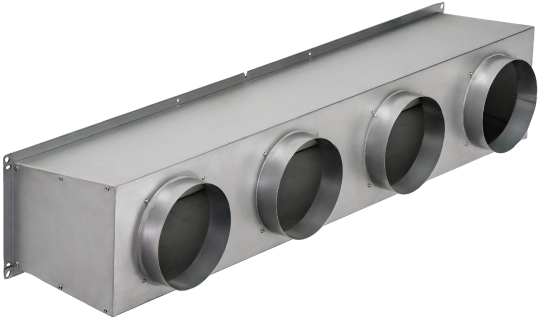

Flexible pipe connection unit
calculation-relevant accessory
for the connection of round pipes to the air intake and/or air outlet of the unit. Available in various sizes.
Suitable for: Model size 1, Number of connecting pieces 2 St., DN 200
Suitable for: Model size 1, Number of connecting pieces 2 St., DN 200
Article no.:
34825B0B0105
List price
351.00 CAD
zzgl. 19% MwSt.

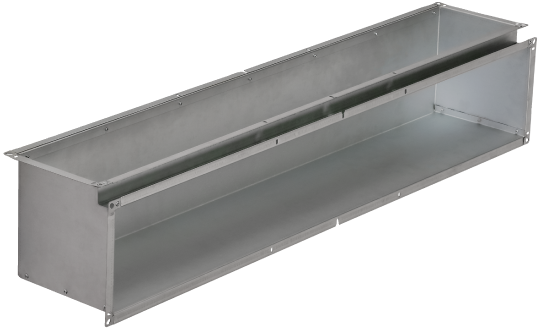

Air duct, 90° angled
calculation-relevant accessory
To change the air flow in the air duct at right angles.
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
34825B0B0103
List price
294.00 CAD
zzgl. 19% MwSt.

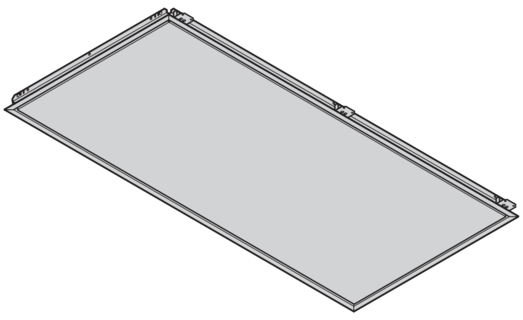

Service hatch with frame
Unit for subsequent maintenance in suspended ceilings, suitable for plasterboard or concrete slab ceilings, Circumferential frame: 25 mm, Colour RAL 9016 traffic-white, supplied separately
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
34825B0B0110
List price
436.00 CAD
zzgl. 19% MwSt.

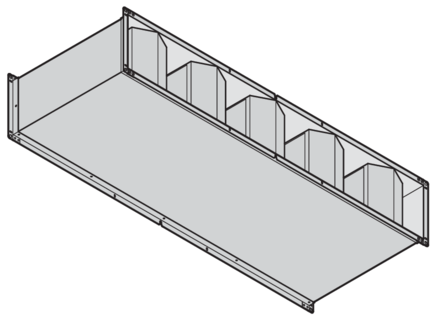

Sound attenuator
calculation-relevant accessory
Splitter noise attenuator, Wall- or ceiling-mounted, supplied separately
Suitable for: Model size 1, Width 570 mm, Length 500 mm, Height 240 mm
Suitable for: Model size 1, Width 570 mm, Length 500 mm, Height 240 mm
Article no.:
34825B0B0106
List price
377.00 CAD
zzgl. 19% MwSt.

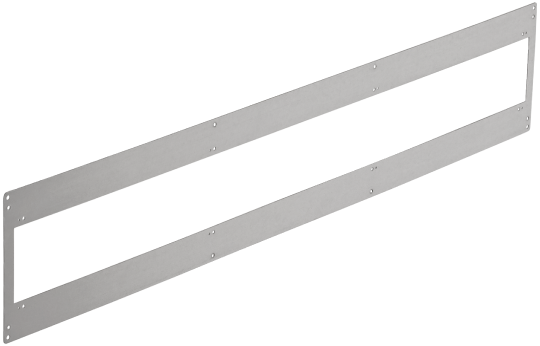

Transition panel
for air intake to connect to the Venkon’s air-side accessories
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
34827B0B0106
List price
70.00 CAD
zzgl. 19% MwSt.

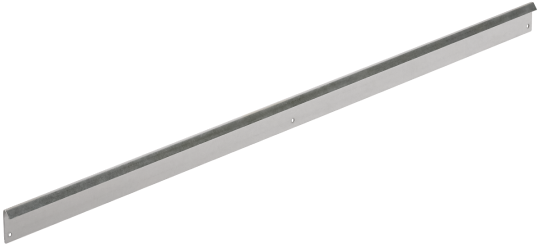

transition angle
for air outlet to connect to the Venkon’s air-side accessories
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
34827B0B0107
List price
70.00 CAD
zzgl. 19% MwSt.
